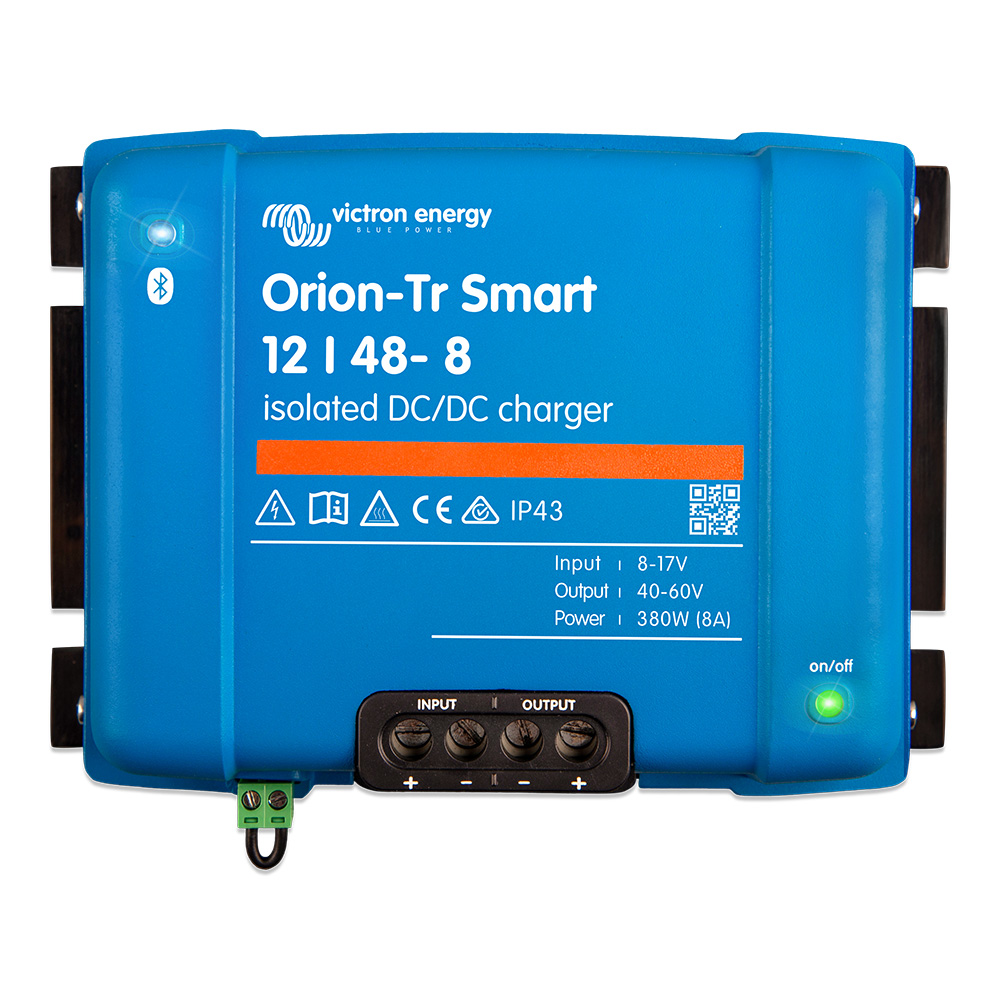

A specialist unit: it takes 12V from a standard vehicle electrical system and charges a 48V battery bank. 48V house systems are becoming more common on large builds because higher voltage means lower current for the same power, which means thinner cable, smaller fuses and less voltage drop over long runs.

Why anyone runs 48V

Power is volts times amps. Pulling 2,000W from a 12V bank means roughly 170 amps — that is heavy cable, big fuses and real heat. The same 2,000W at 48V is about 42 amps, which you can move on far smaller wire. On a long-wheelbase build, a van conversion or an expedition truck with runs of 15 feet or more, 48V stops being exotic and starts being sensible.

Isolated and smart

Galvanic isolation keeps the vehicle side and the house side electrically separate, which matters more as system voltages diverge. Bluetooth setup and monitoring through VictronConnect, with adaptive multi-stage charging and selectable battery profiles.

Specifications

• Input: 12V nominal
• Output: 48V nominal, 8A, 380W
• Galvanically isolated
• Bluetooth built in — VictronConnect app
• Adaptive multi-stage charging, selectable battery profiles
• Weight: 4.12 lb
• Manufacturer part number: ORI124838120

This is not a 12V charger

If your house battery is 12V — which covers most overland builds — this is the wrong unit and you want an Orion XS 12/12. This one is specifically for charging 48V banks. Ask us before you order if there is any doubt.
