Off Road Trailer – Military Style With Full Articulating Suspension 5×5 Bolt Pattern w/ Tires, Wheels and Brake Controller

$6,499.99

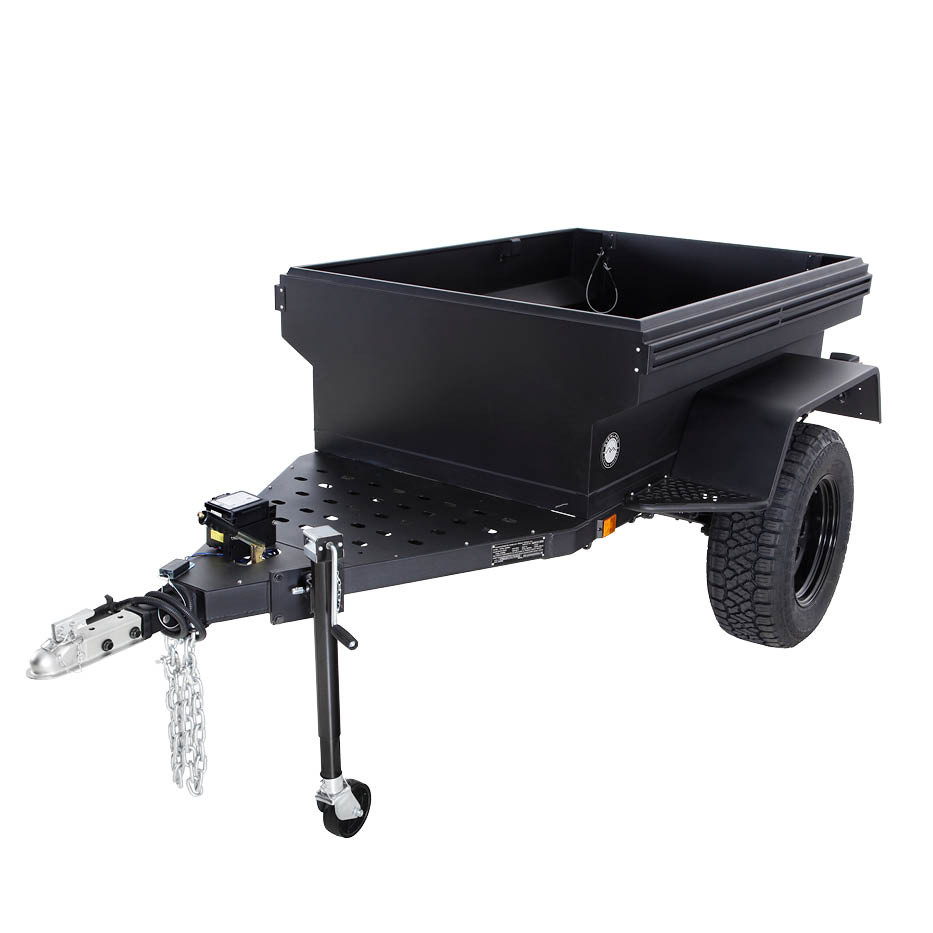

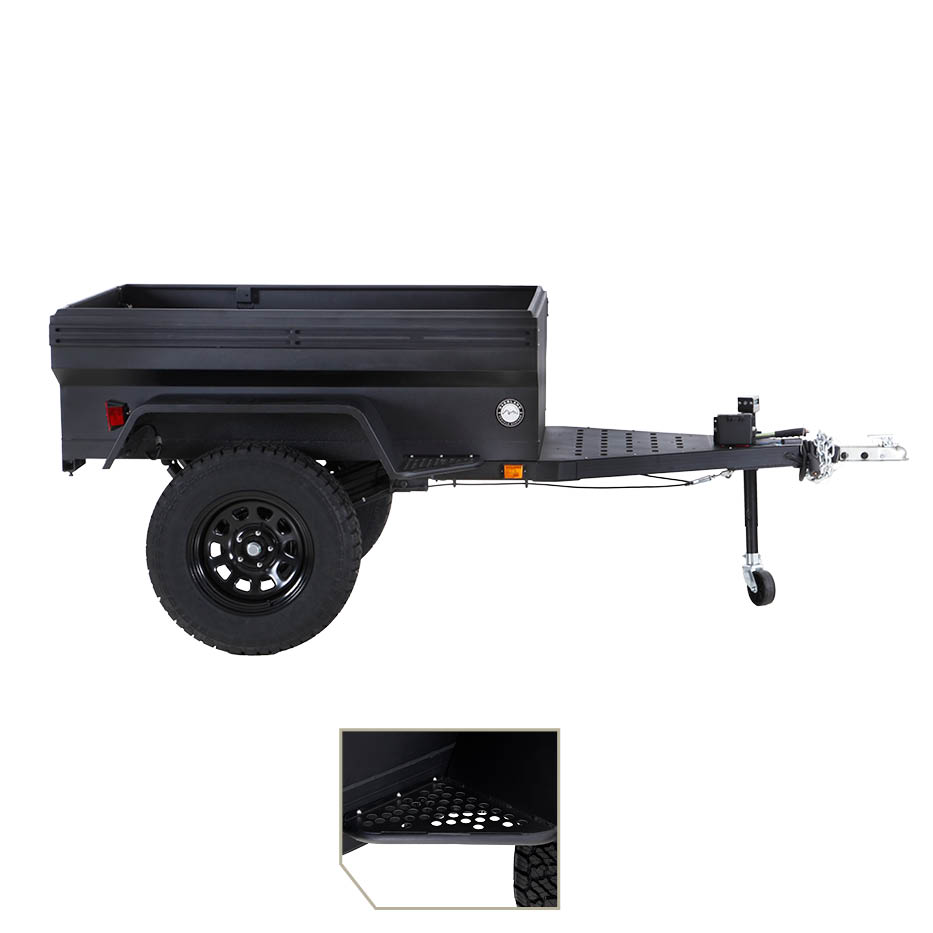

Military-style off-road trailer with full articulating suspension. 5×5 bolt pattern.

Ships by freight truck

This item is too large to go by UPS or FedEx, so it travels on a freight truck (LTL). Total shipping weight is about 1,550 lb.

  • We will contact you after your order to arrange a delivery appointment.
  • Delivery is curbside. The driver does not bring the item indoors or install it.
  • Some freight carriers need a business address with a loading dock or forklift. If this is going to a home address, email shopjcoverlanders@gmail.com before you order and we will confirm what we can do for your address.
SKU: 70100010 Category: Tags: , , Brand:

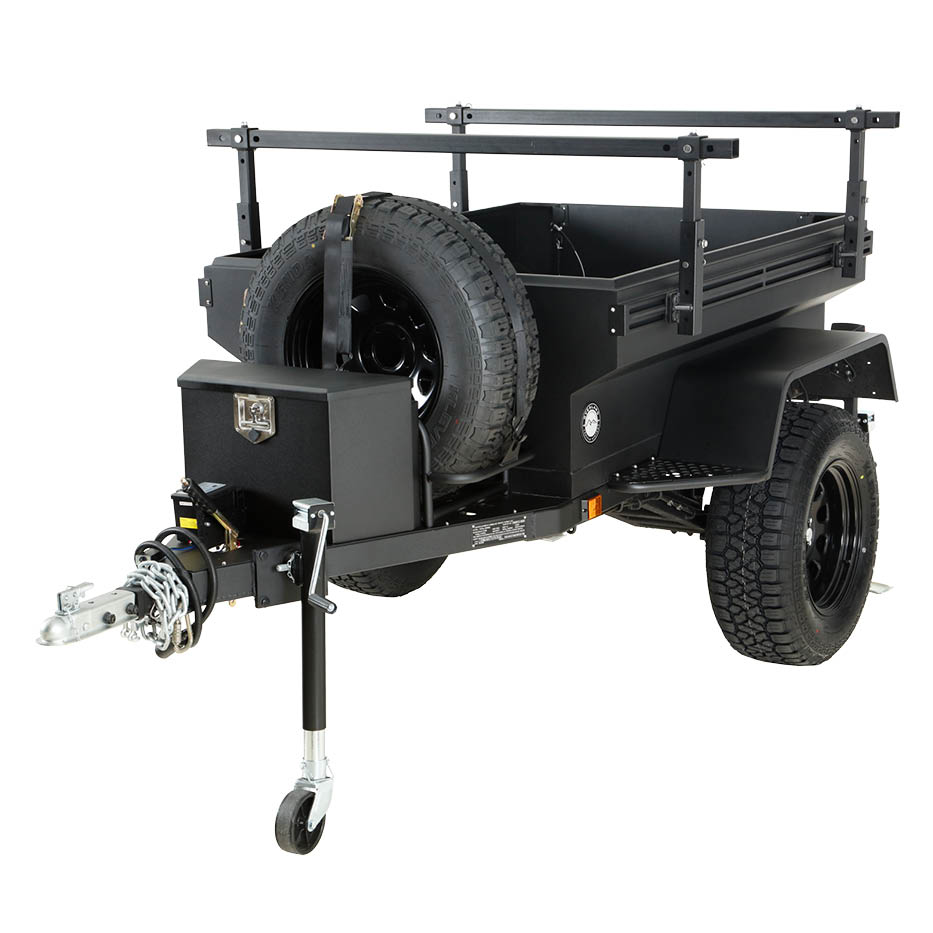

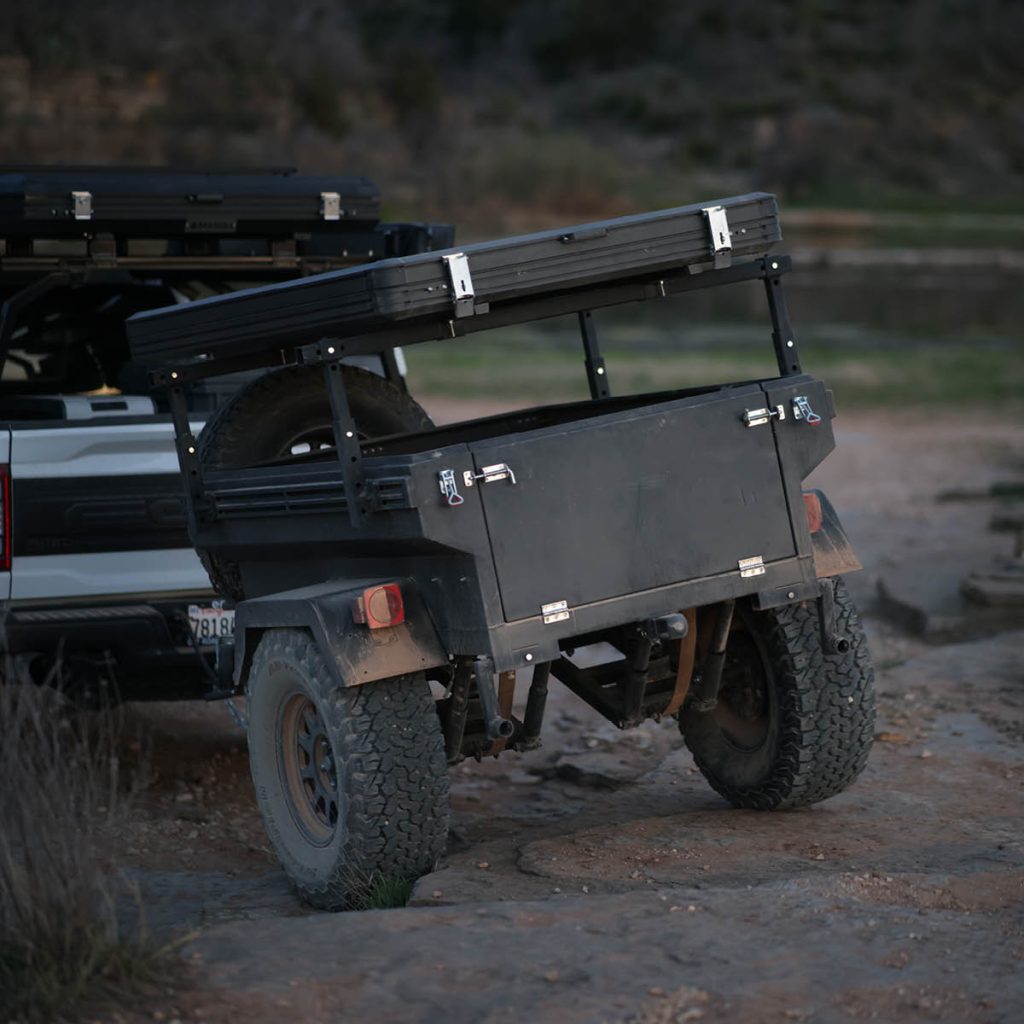

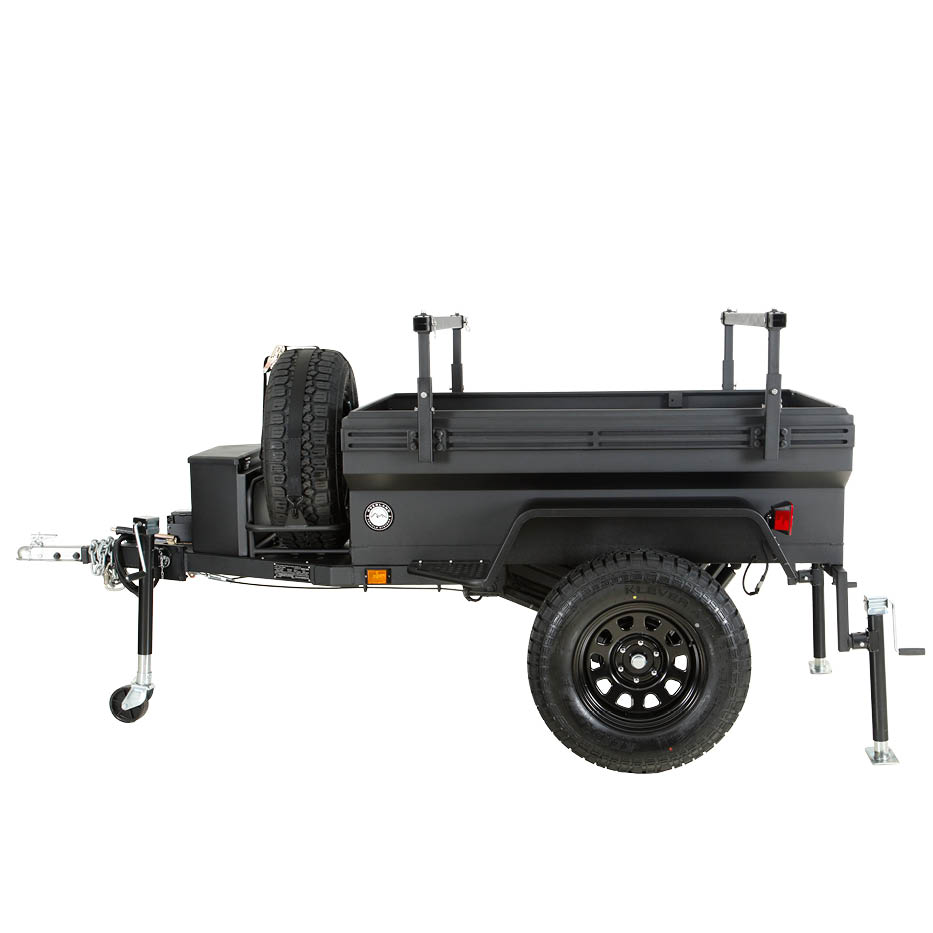

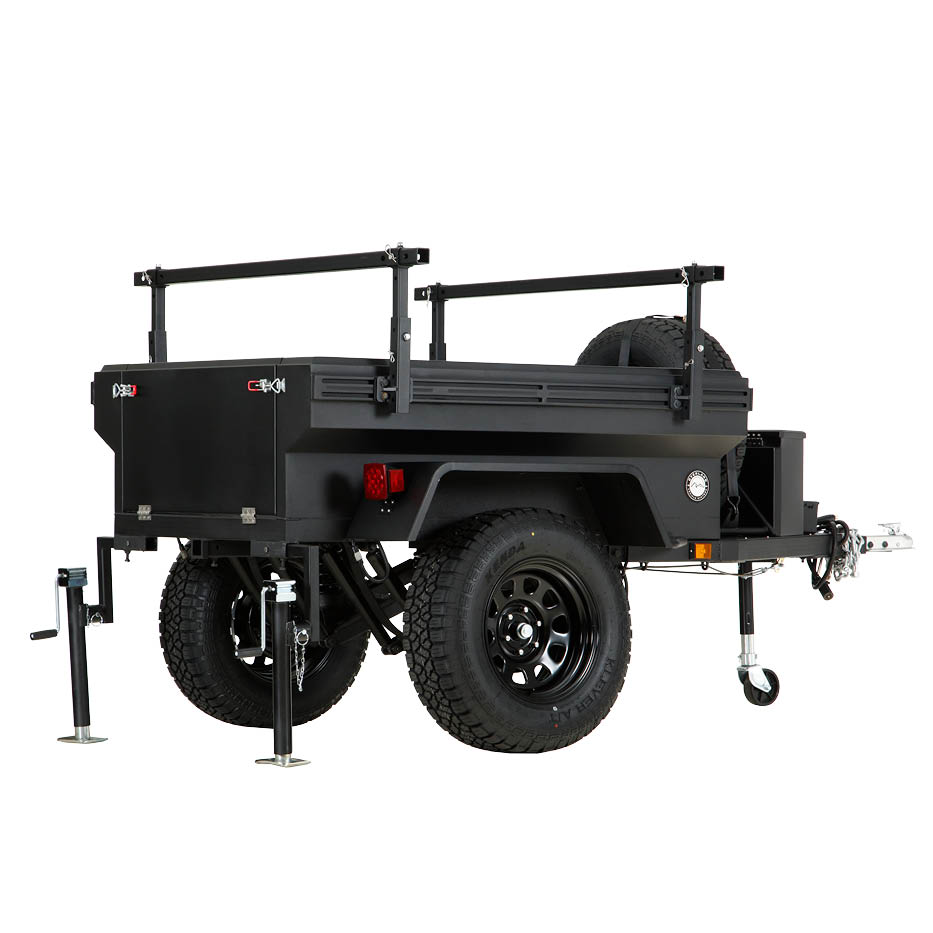

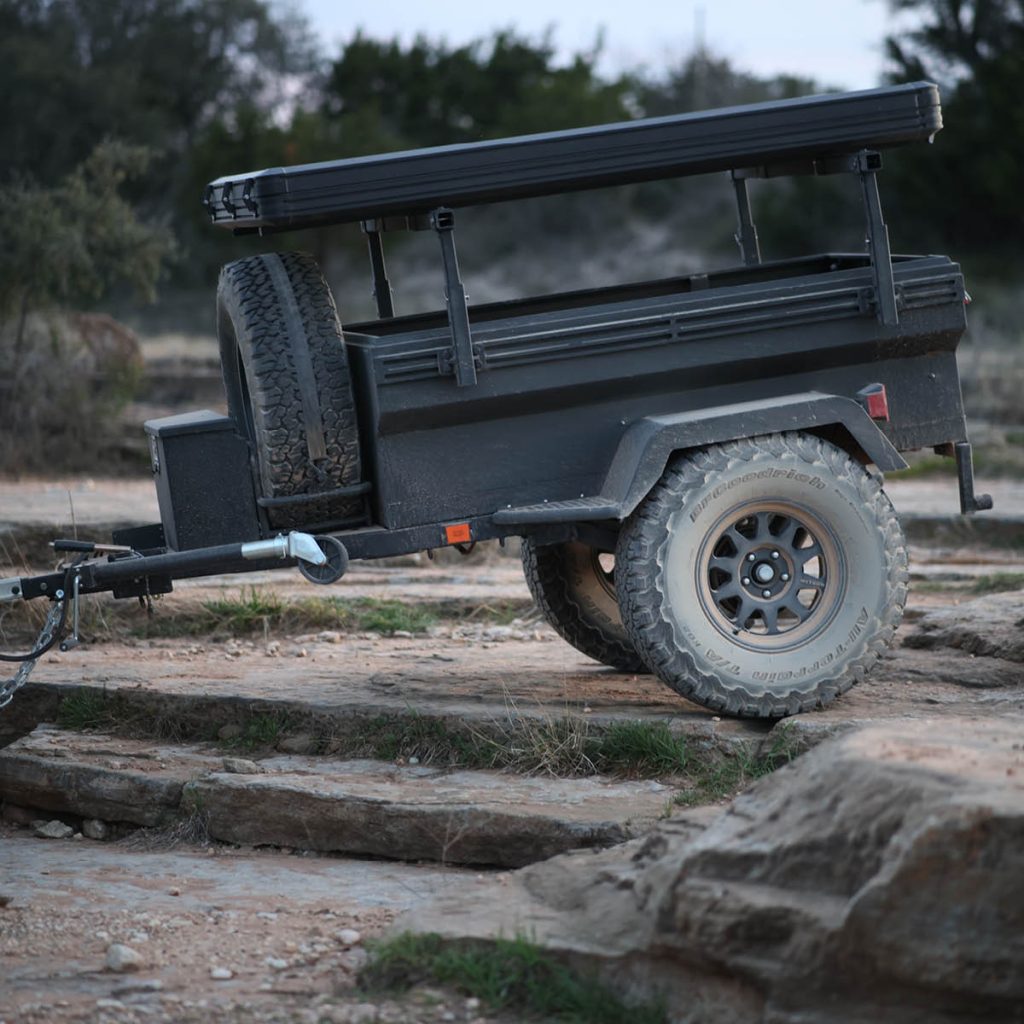

A military-style off-road trailer built to go where the vehicle towing it goes.

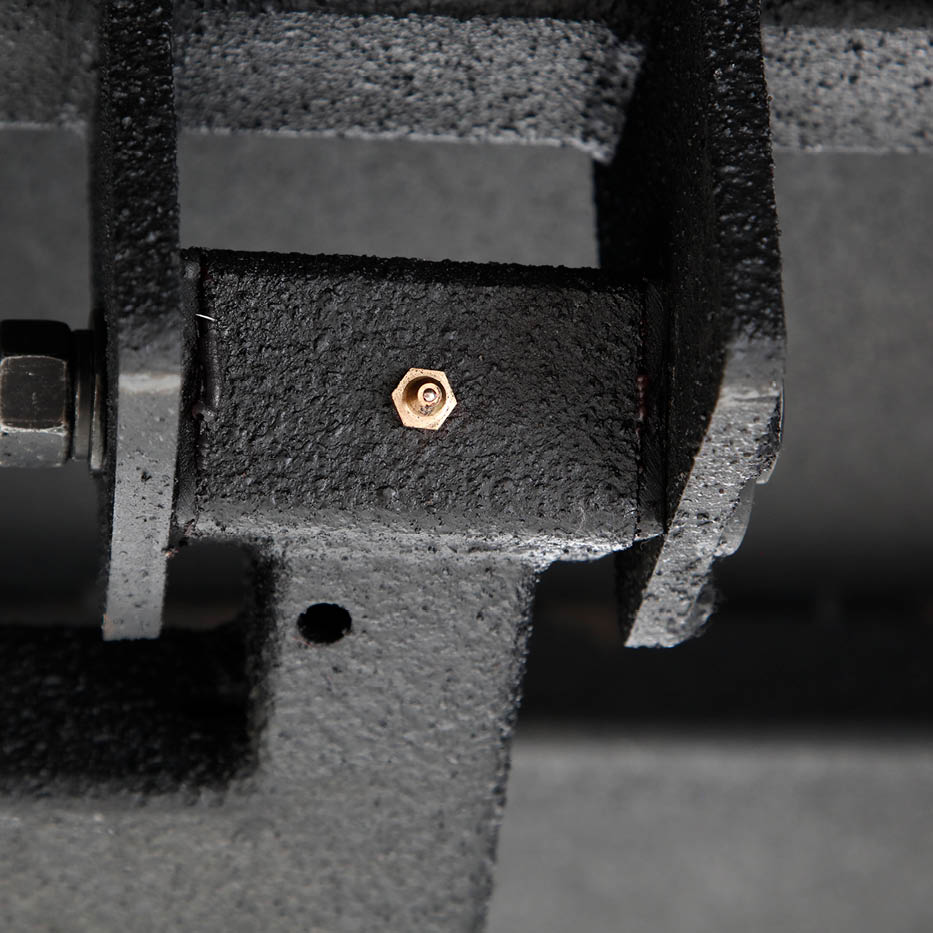

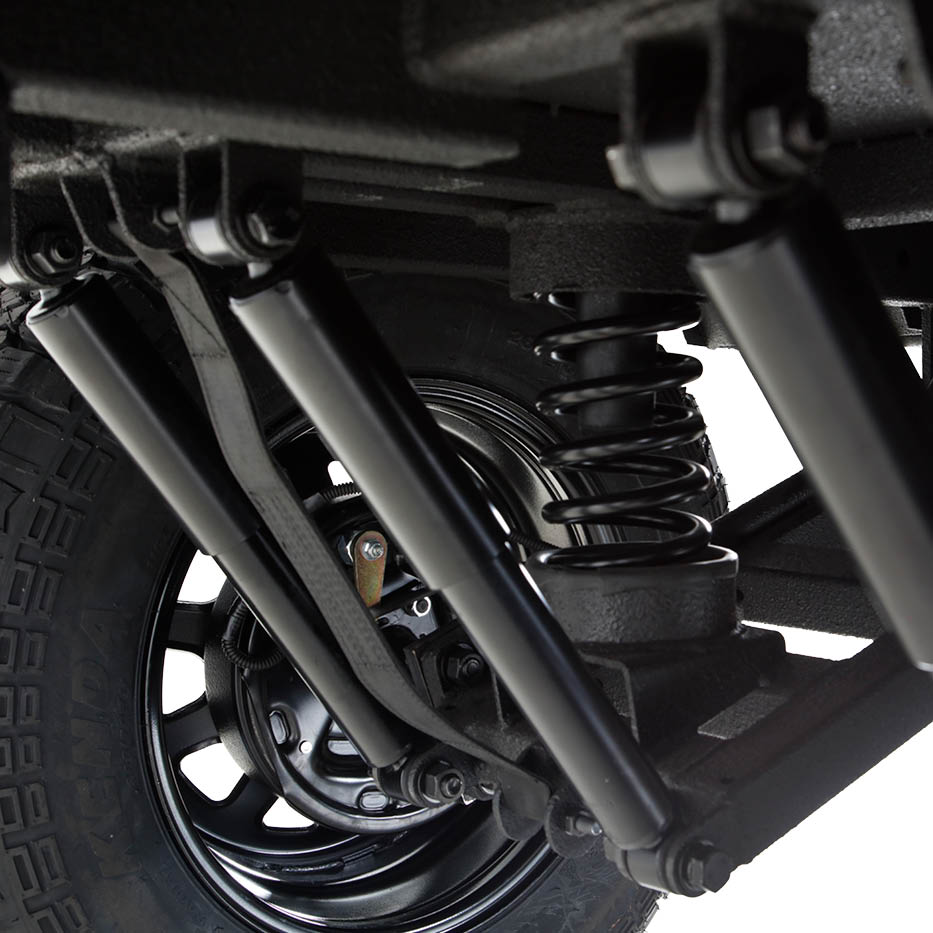

Suspension and clearance: independent coil spring trailing arms with 7 inches of travel and ground clearance up to 33.75 inches at the lowest suspension point. That is what separates an off-road trailer from a utility trailer with knobbly tires — it articulates over the same terrain you do instead of dragging or bottoming out.

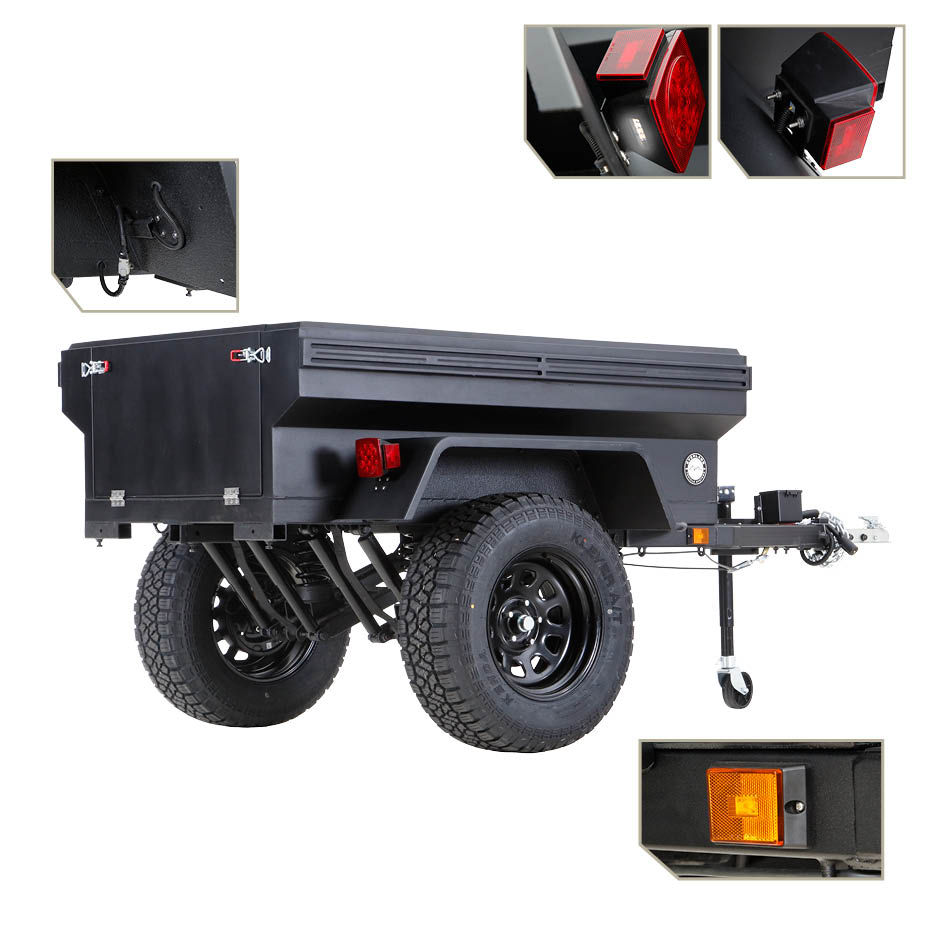

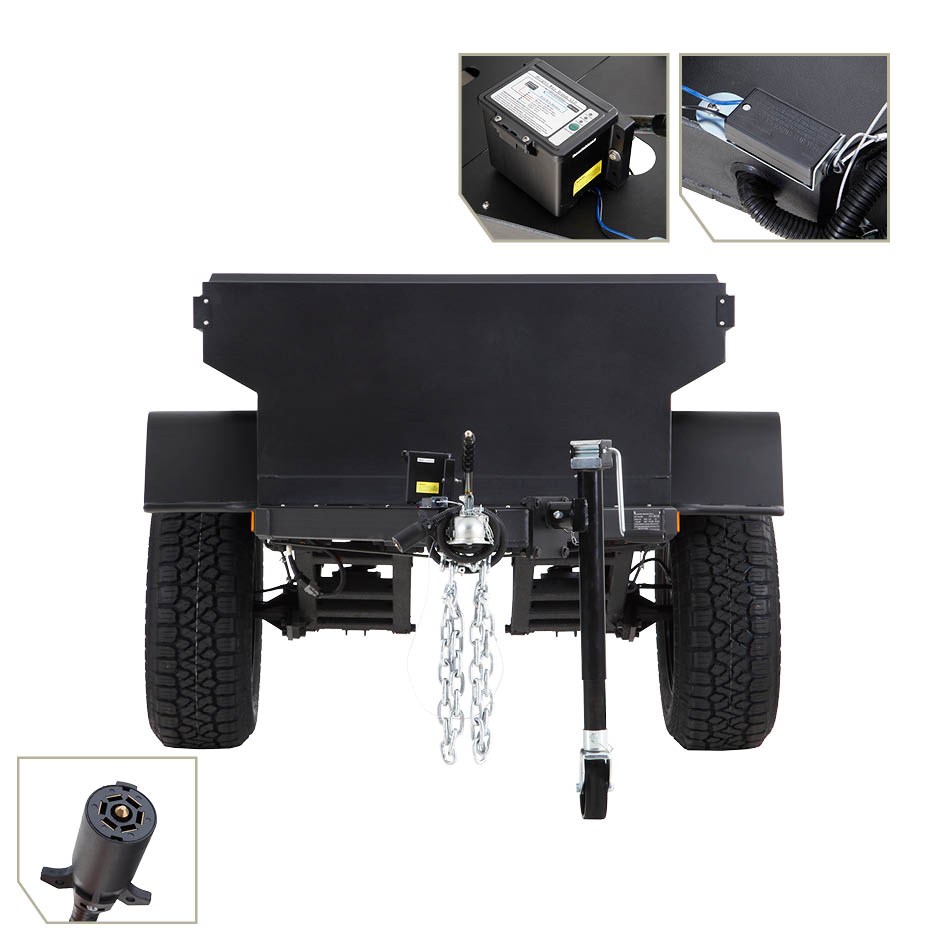

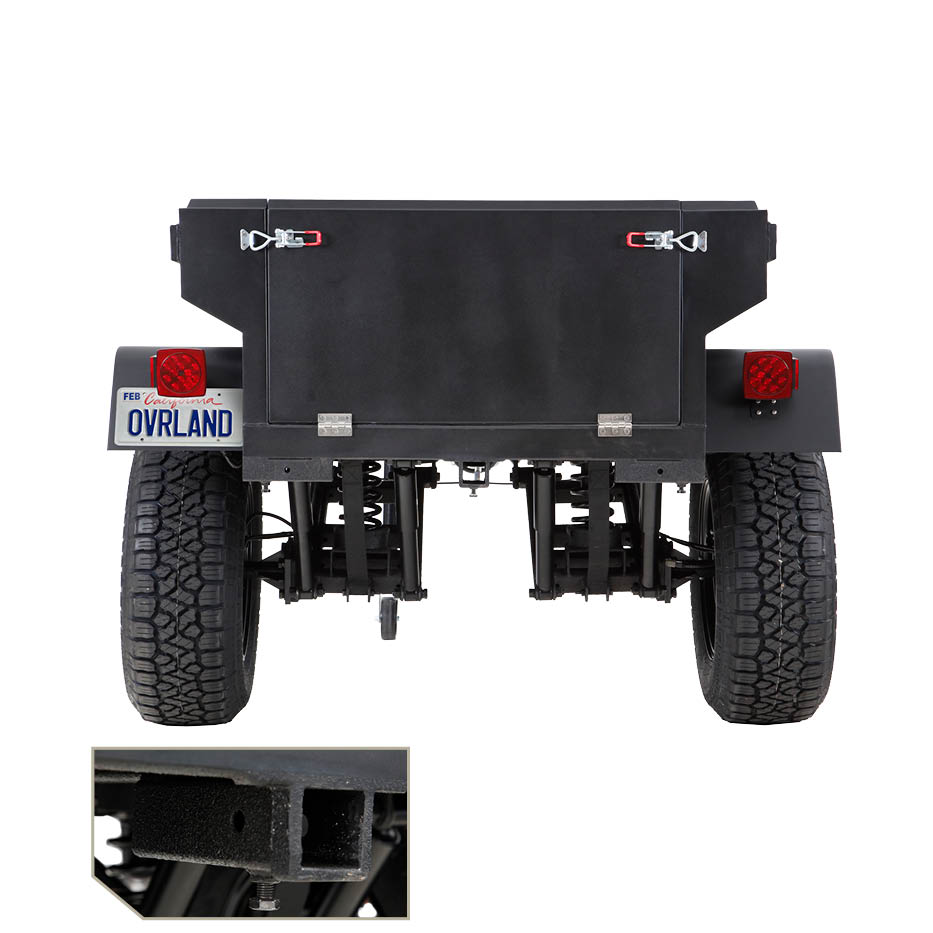

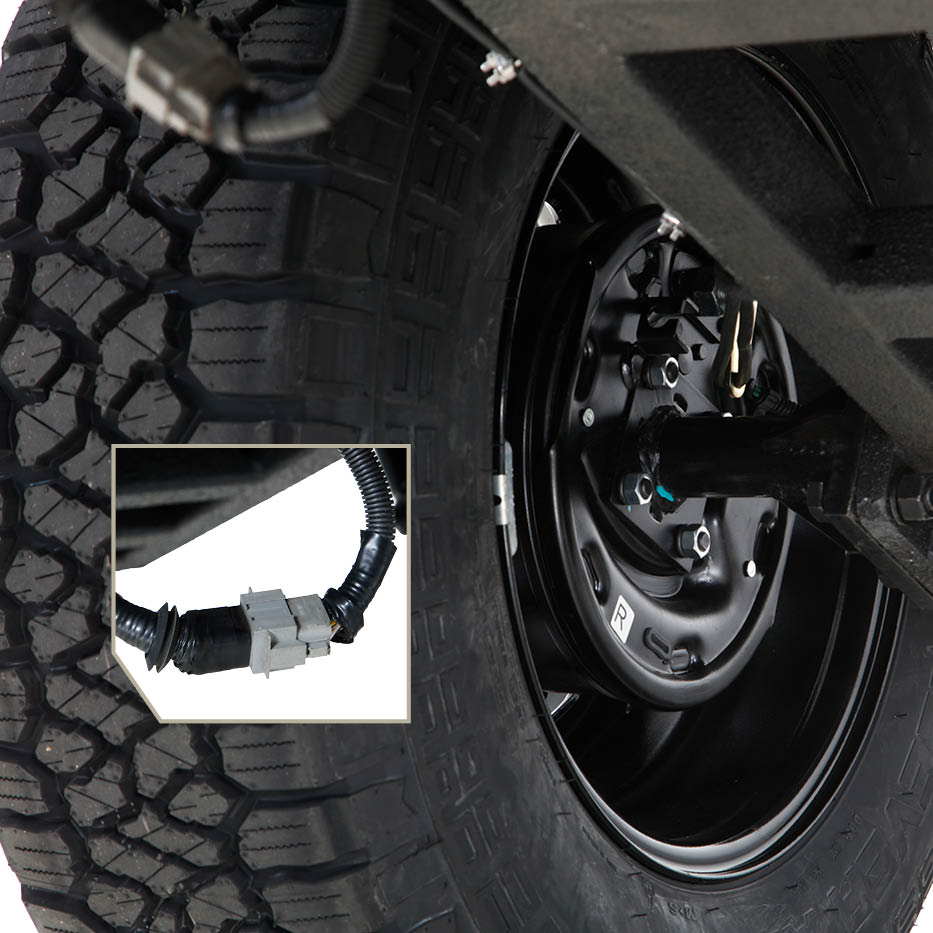

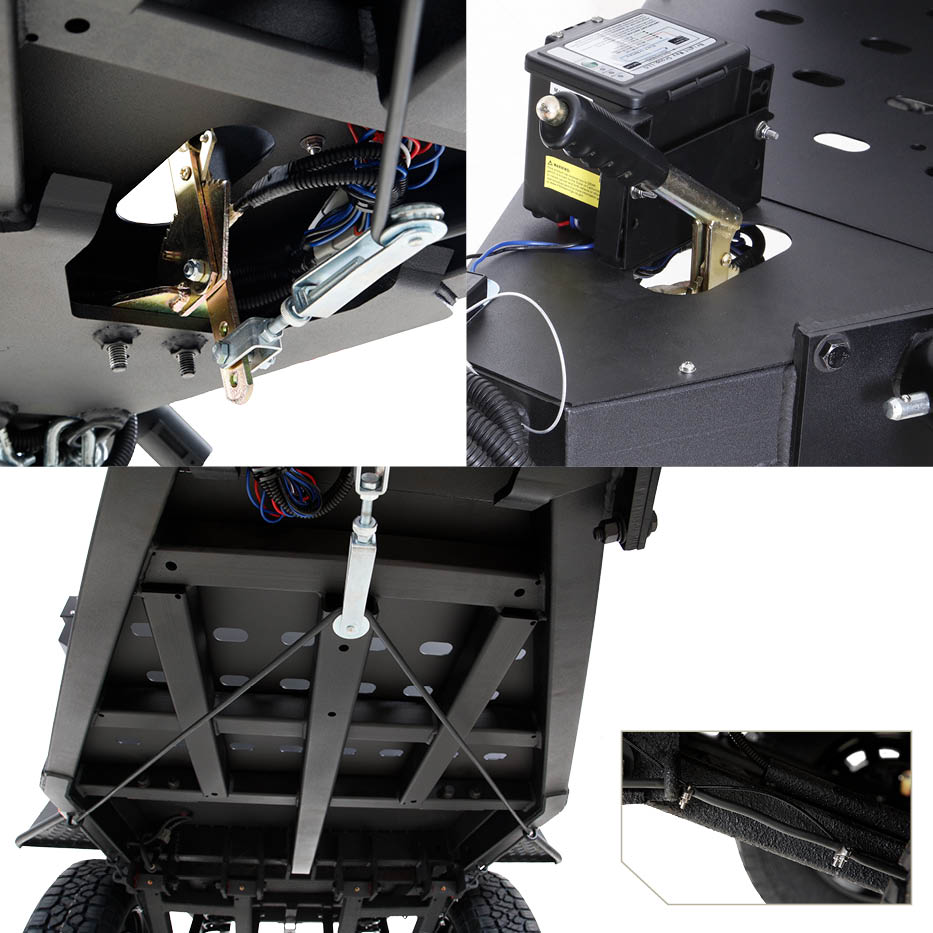

Braking and safety: electric 10 inch drum brakes with a parking brake, a manual parking brake for roll control on any terrain, and an integrated breakaway system. DOT tail, brake and side marker lights, marine-grade wiring with Deutsch connectors, and a 7-pin harness that integrates with the vehicle.

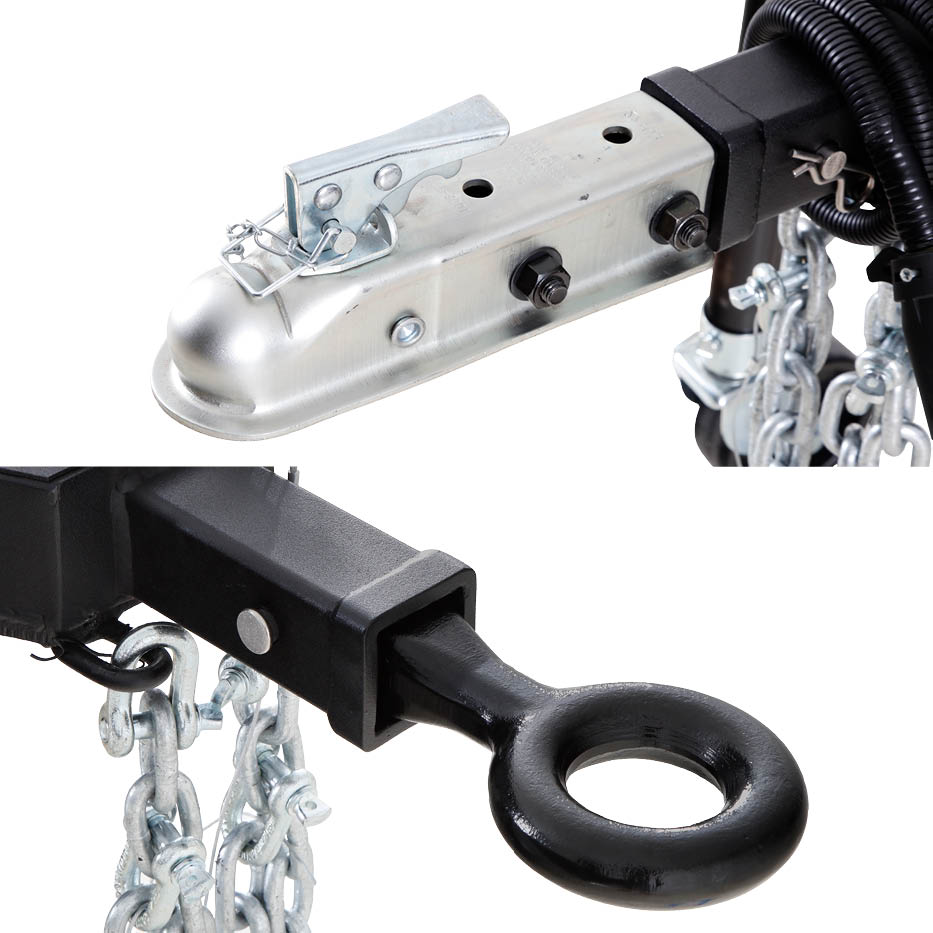

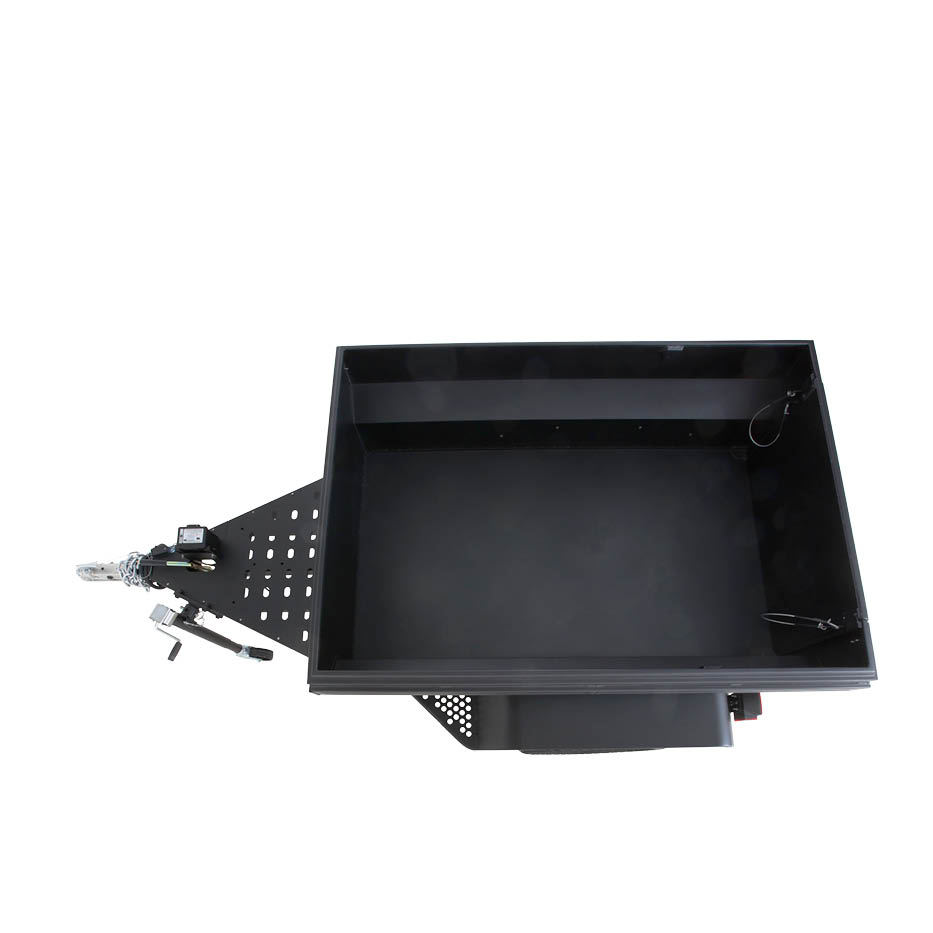

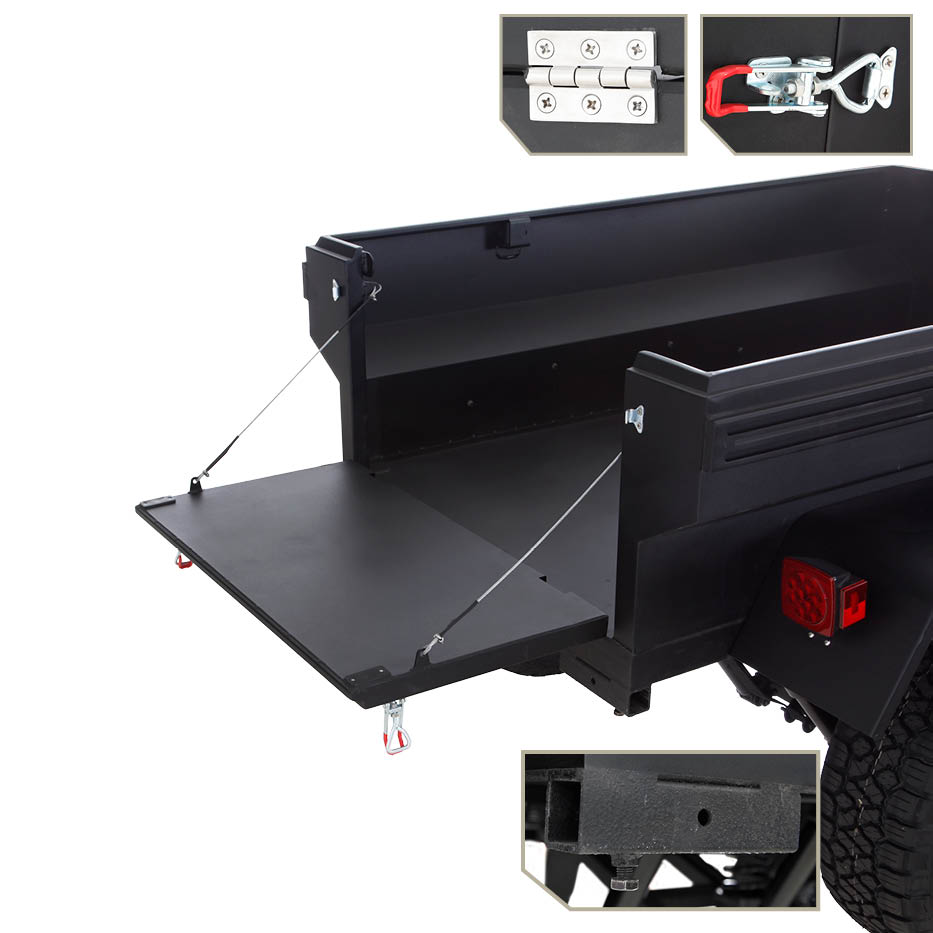

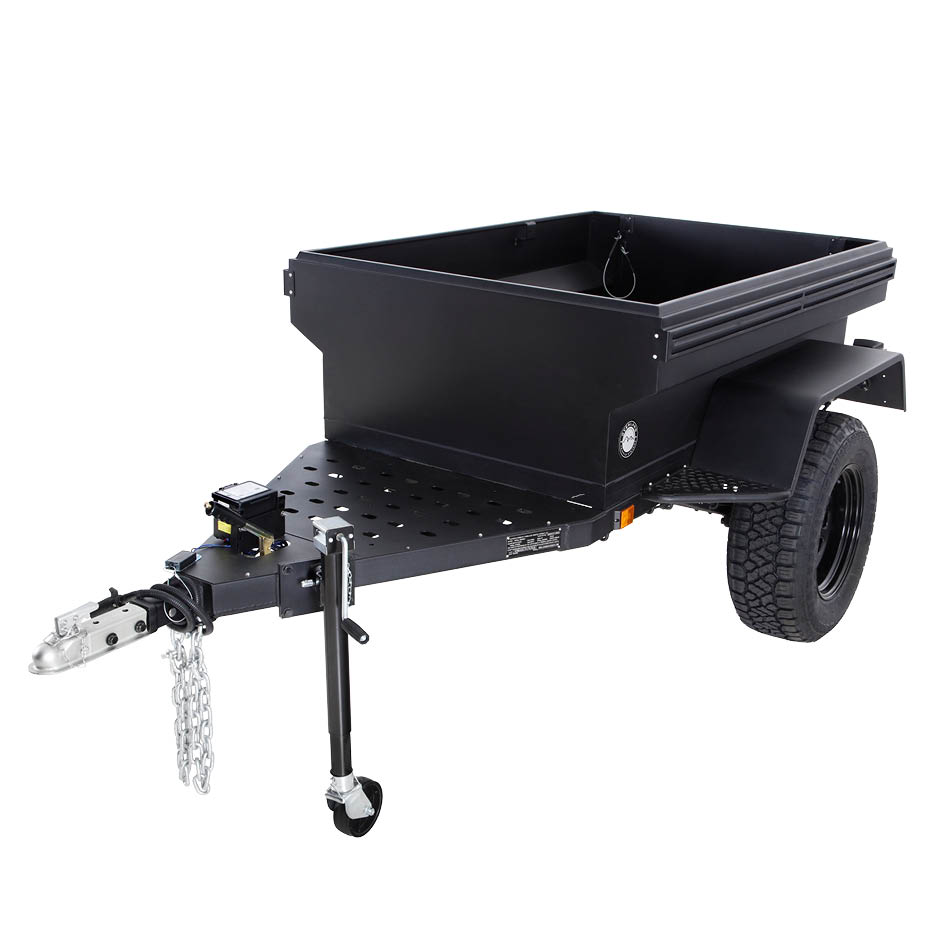

Build: electrostatic plated undercoat with electrostatic plated rhino lining in the bed, marine-grade 304 stainless hardware, heavy-duty spring pull latch on the tailgate, and a removable heavy-duty jockey wheel and tongue jack. Front coupler takes a 2 inch ball or a pintle hook.

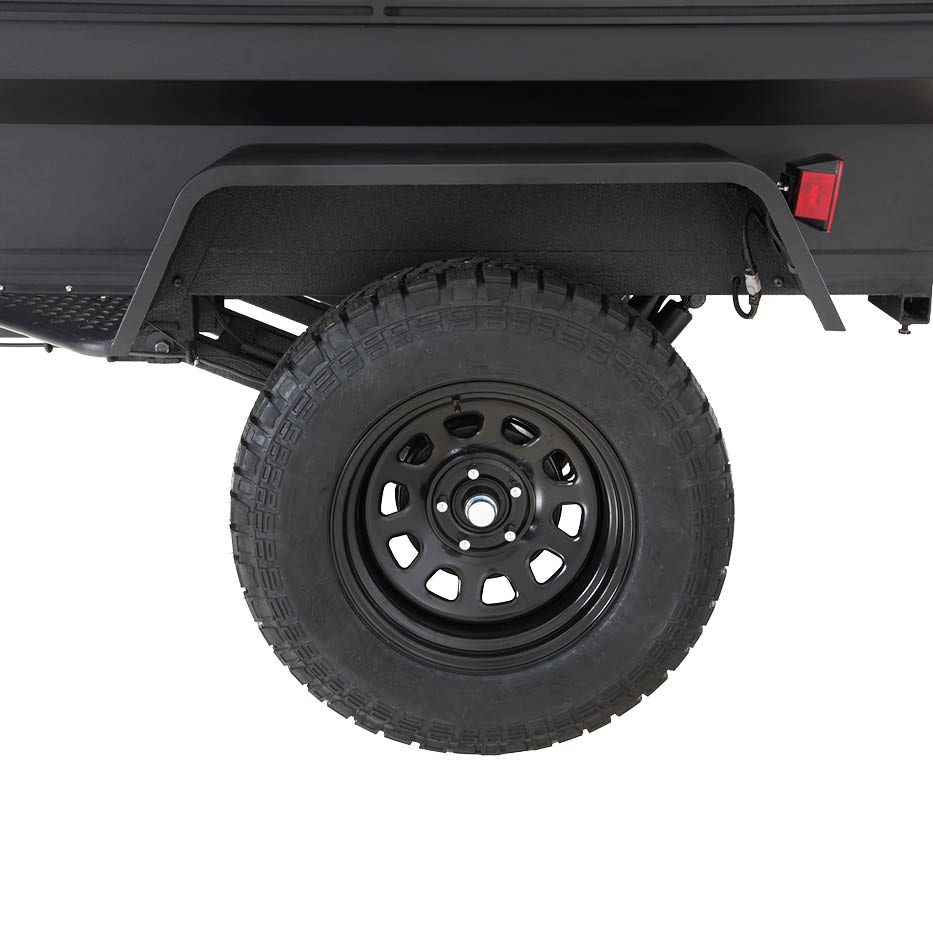

265/70/17 tires and wheels are included.

This is the 5 x 5 bolt pattern version.

Match the bolt pattern to your tow vehicle if you can. It is the single most useful decision you will make about this trailer: if the trailer's wheels match the truck's, one spare covers both. Get it wrong and you are carrying two spares into the backcountry, or gambling that you will not need the one you left behind.

The 5 x 5 pattern is the Jeep pattern — JK, JL and Gladiator.

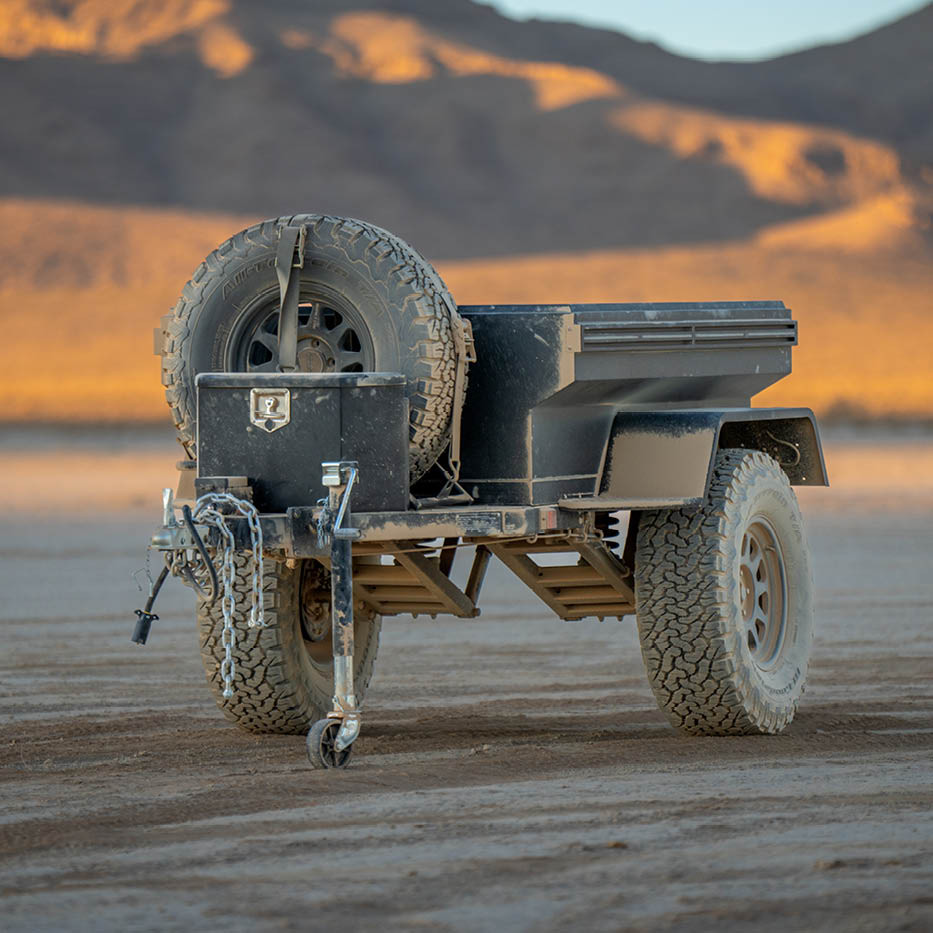

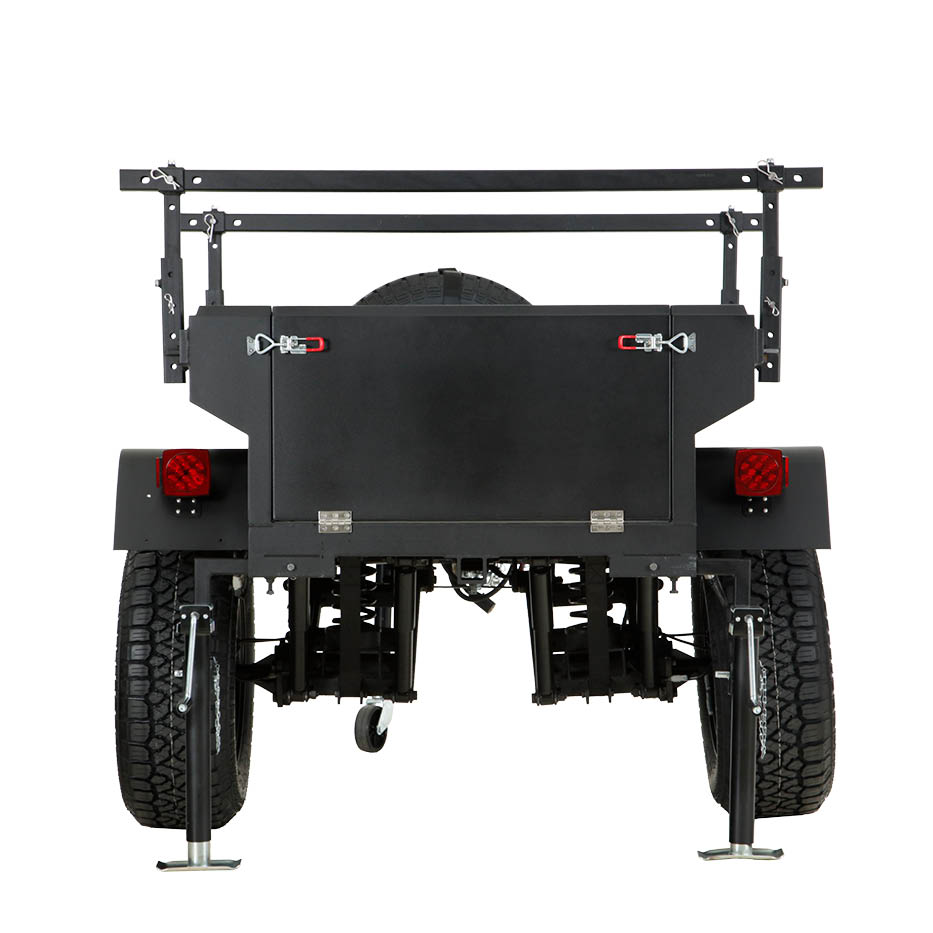

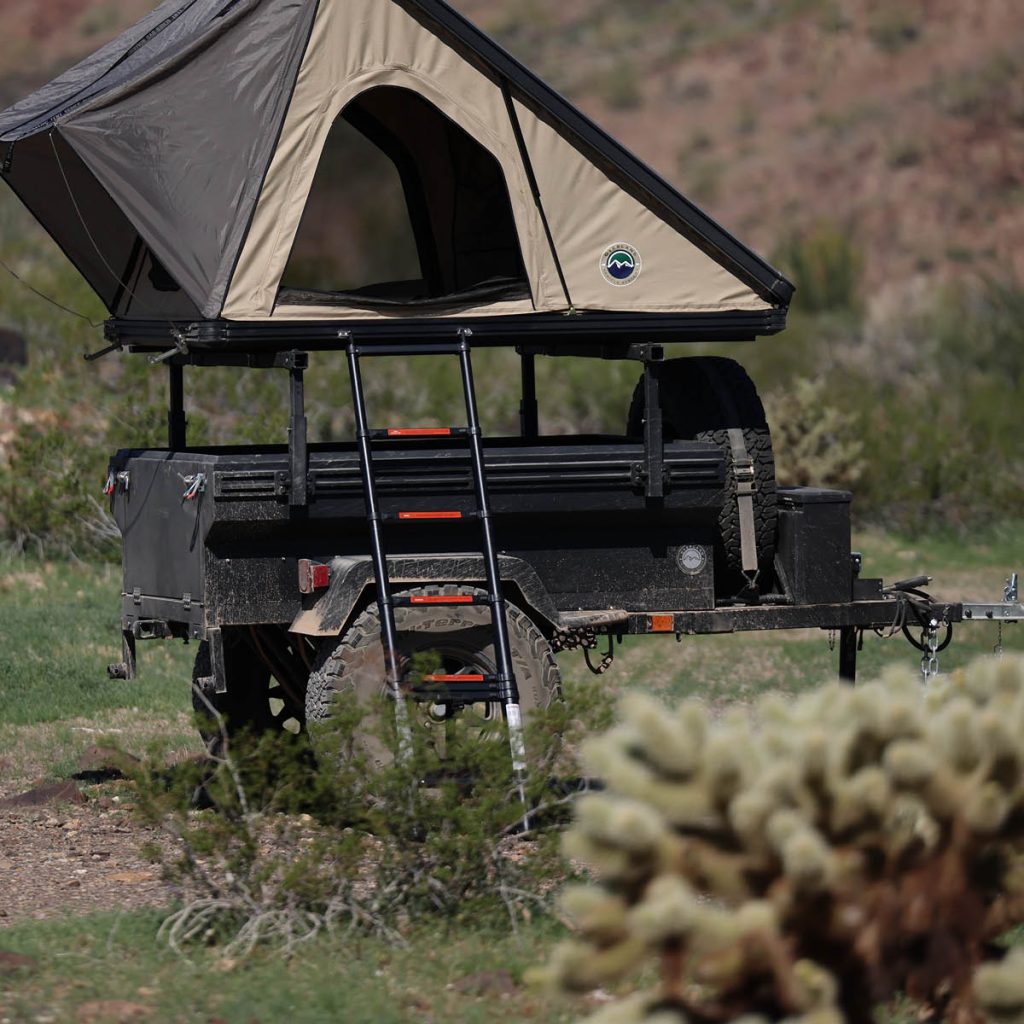

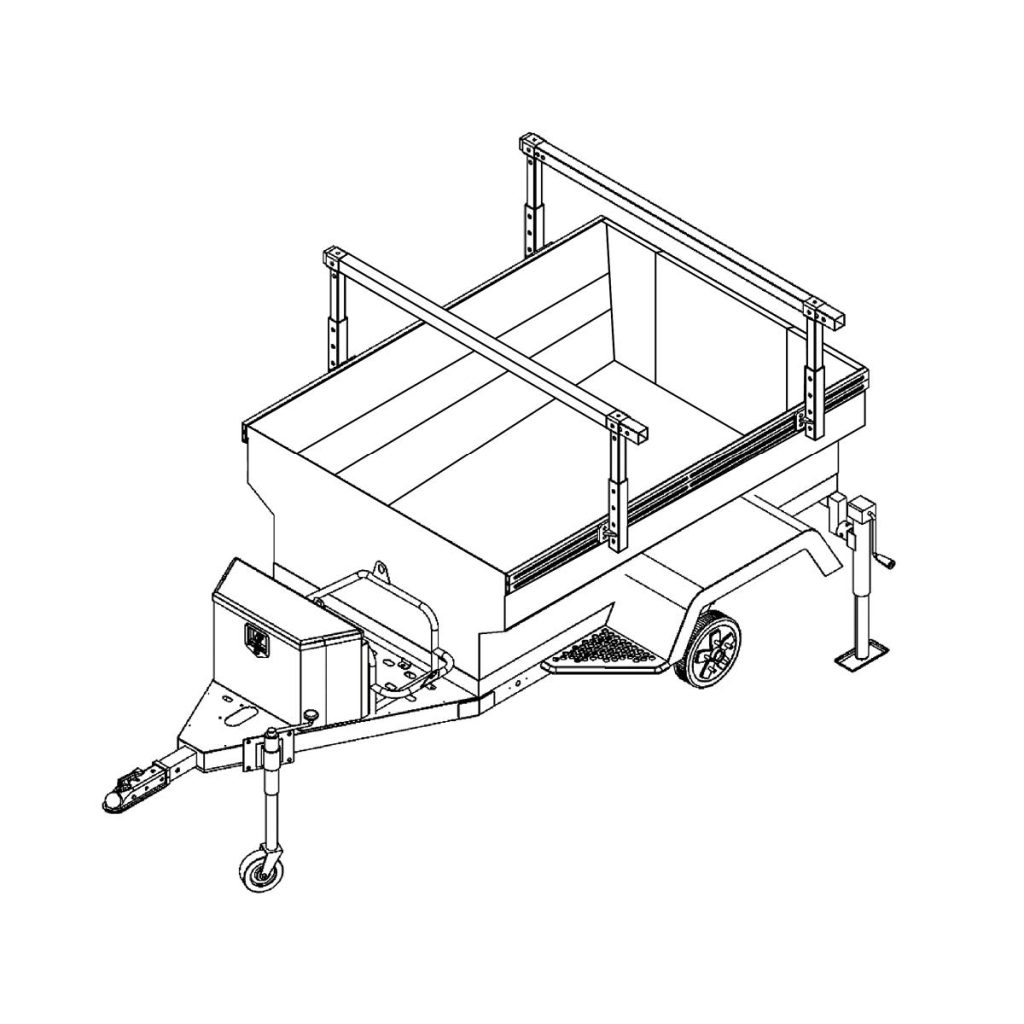

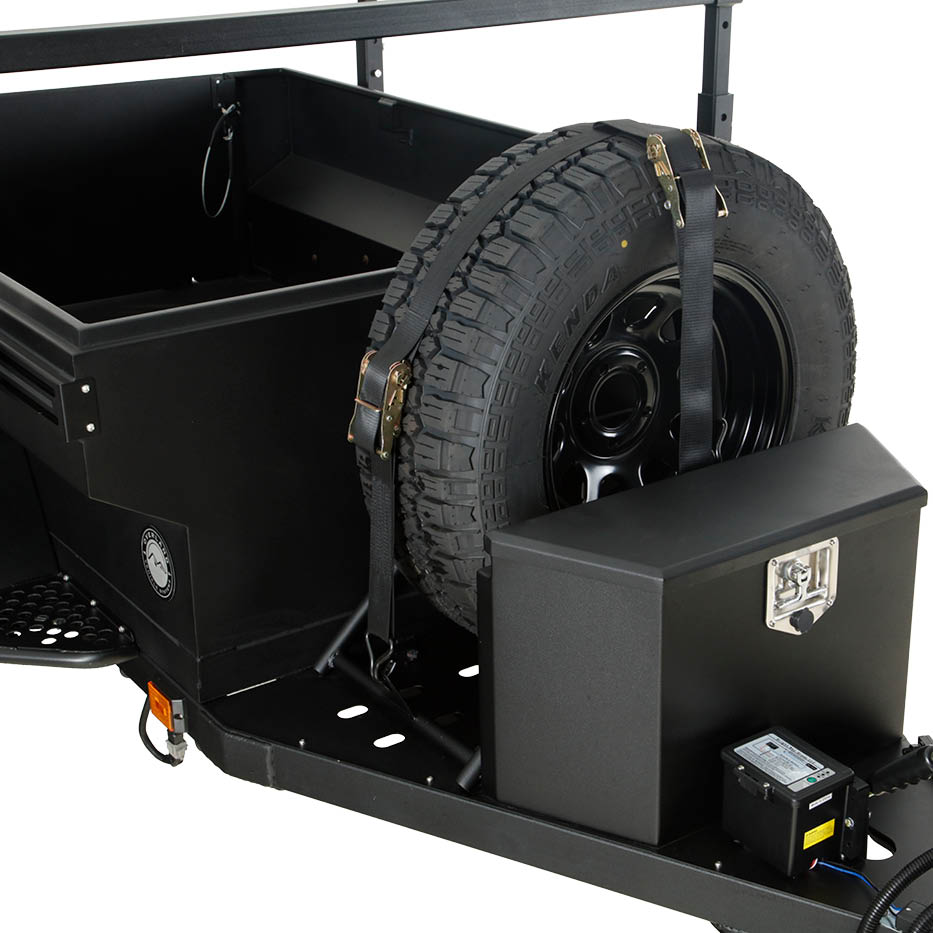

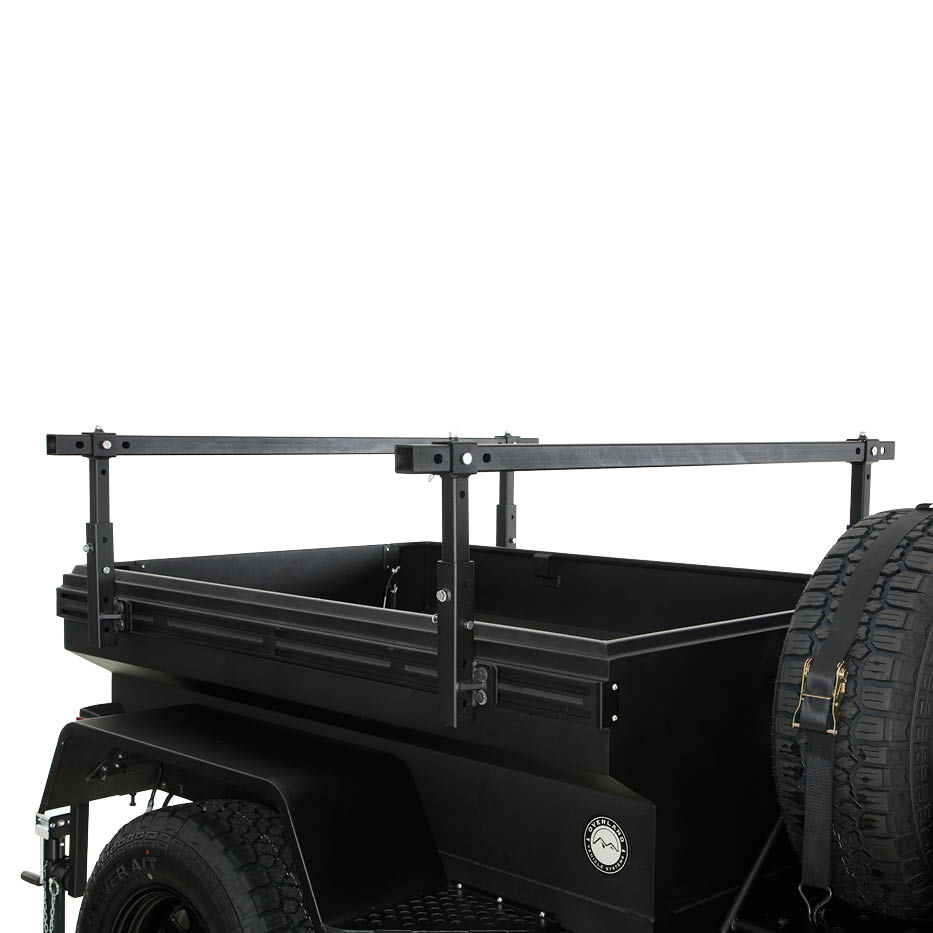

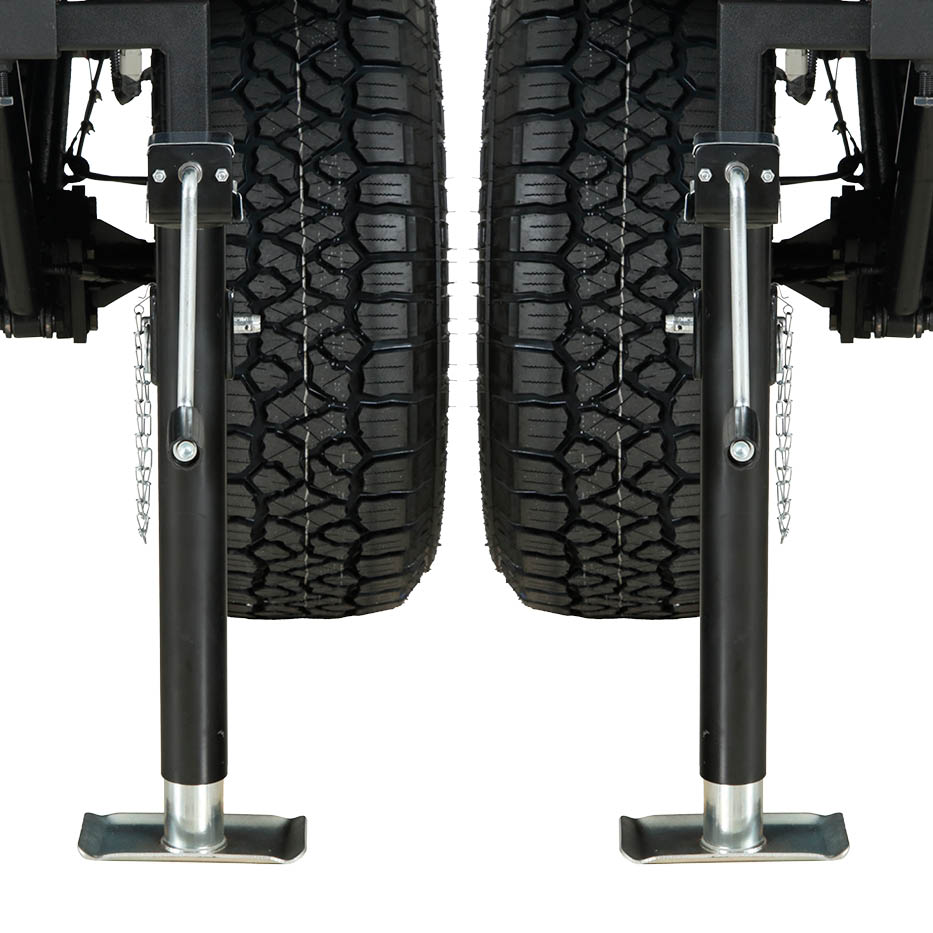

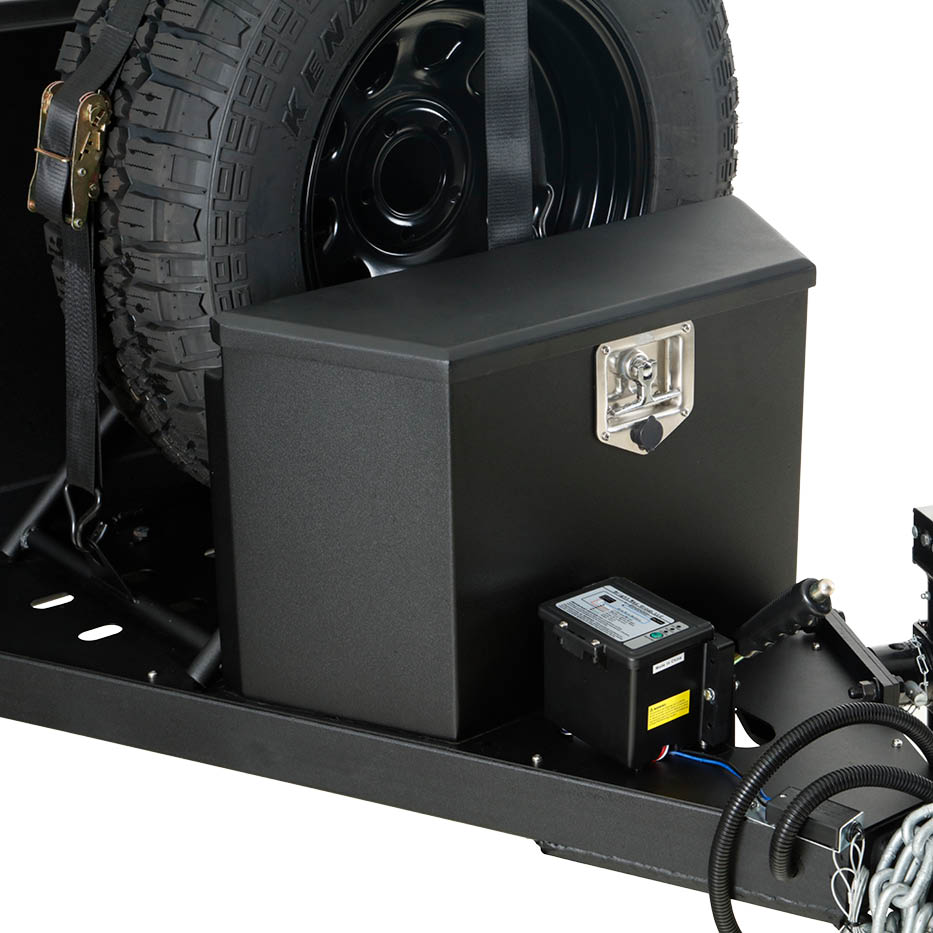

Optional accessories are sold separately: tongue cargo box, spare tire carrier, tent upright posts and rear support jacks.

Additional information

Weight 1550 lbs
Dimensions 84 × 72 × 48 in
